DESCRIPTION

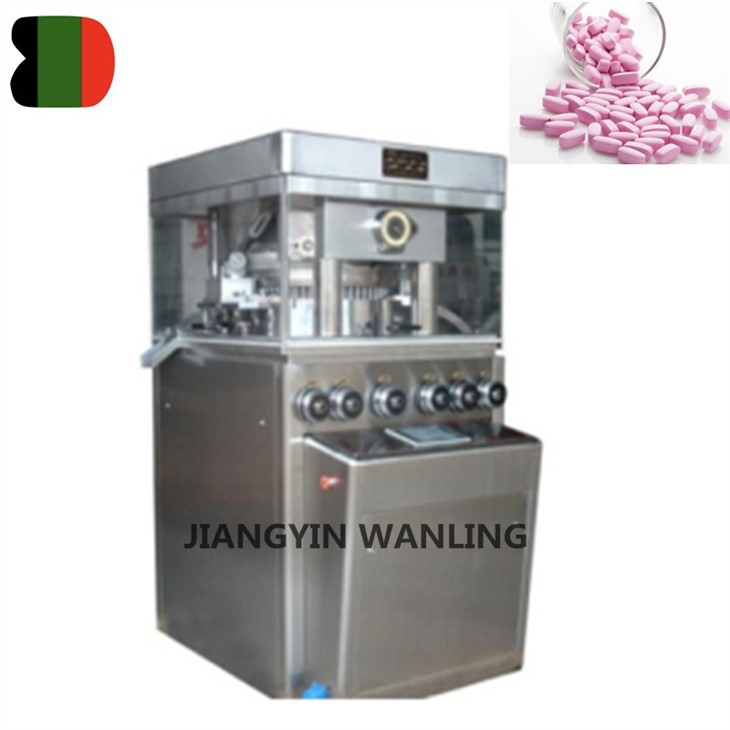

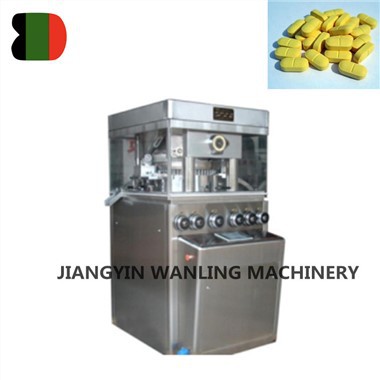

Multilayer Tablet Press is an automatic continuous production equipment for pressing granular materials into round, irregular and sheet materials with characters, symbols and graphics with a diameter of no more than 20mm.
PRODUCT FEATURES
Multilayer Tablet Press machine is equipped with organic glass and visual window, visual tablet state, all of the side plate can turn on and clear up and maintenance is easy.
TECHNICAL PARAMETERS
|
Model |
ZP-9 |
|
Punch quantity(sets) |
9 |
|
Max tablet pressure(kn) |
60 |
|
Max tablet diameter(mm) |
20 |
|
Max filling depth(mm) |
15 |
|
Max tablet thickness(mm) |
6 |
|
Turret rotation speed(r/min) |
30 |
|
Production capacity(pc/h) |
16200 |
|
Motor power(kw) |
2.2 |
|
Overall size(mm) |
480*630*1100 |
|
Machine weight(kg) |
360 |
